Addicore  |  SKU: AD165

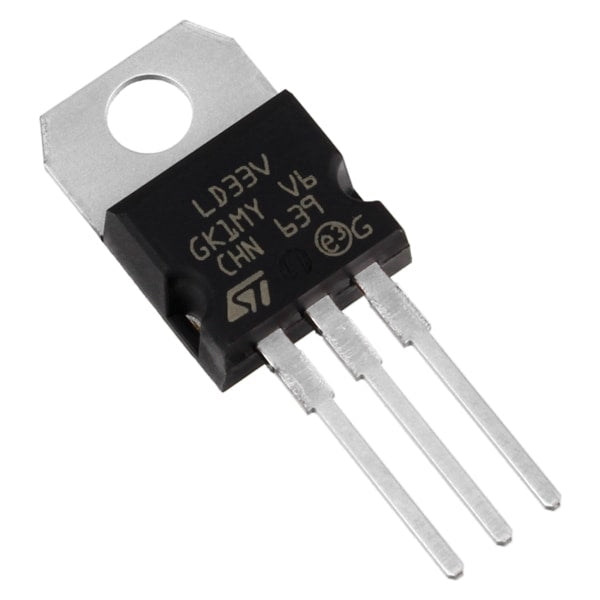

3.3V Voltage Regulator 950mA LD1117V33 (LD33V)

$0.64
Shipping calculated at checkout.


Delivery

Ships Same Day if Ordered Before Noon Pacific Time

We strongly recommend using at least a 10µF capacitor on the input and output for stability.

Product Contents:


  • 1 piece - 3.3V Voltage Regulator 950mA LD1117V33 (LD33V)


Specifications:


Output Voltage 3.3V
Minimum Input Voltage 4.3V
Max Input Voltage 15V
Line Regulation 1mV (6mV max)
Load Regulation 1mV (10mV max)
Quiescent Current 5mA (10mA max)
Output Current 950mA, 1300mA max (with adequate heat sinking, TO-220 Heat Sink Set)
Package TO-220
Weight 1.4g (0.05oz)


Resources:




Pinout:


Addicore LD33V TO-220 Pinout
