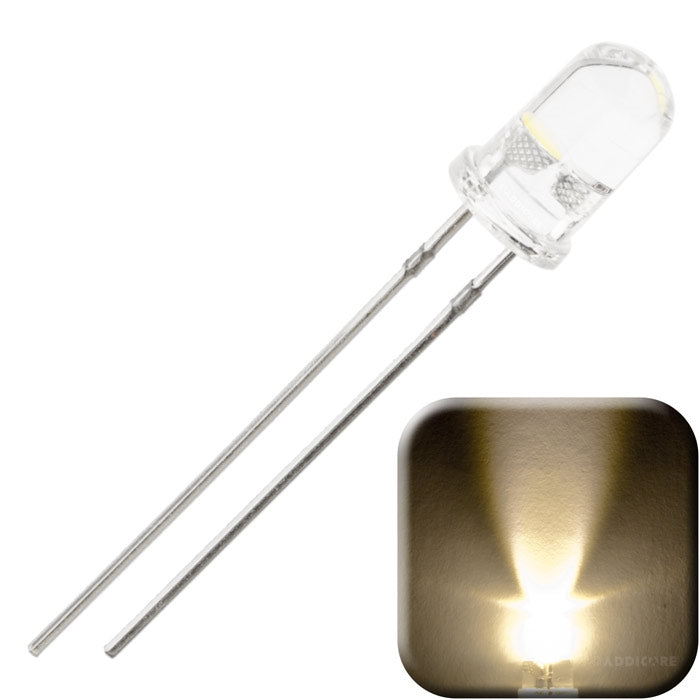

Warm White (3000K) 5mm LED
$0.18
Unit price /
Unavailable
Click the "VIEW QUANTITY DISCOUNTS" button below the "ADD TO CART" button to see discounts on multiples of this item.
Product Contents:
- 1 piece - Warm White (3000 Kelvin) 5mm LED
Specifications:
- Color: Warm White (3000K)
- Voltage: 3.0-3.3V
- Continuous Forward Current: 20mA
- Max Forward Current: 30mA
- Intensity: 8000-9000 mcd
- Lense: Clear
- View Angle: 30 degrees
- Recommended resistors to use with these LEDs when using the given supply voltage:
- 3.3V Supply: 15 Ohm Resistor
- 5V Supply: 100 Ohm Resistor
- 12V Supply: 470 Ohm Resistor
- Shorter pin is the cathode (negative)
- Lense Diameter: 5mm
- Weight: 0.31g (0.011oz)
- Pin length: 25.5mm (1.00 in) and 27.6mm (1.09 in)
- Replacement for Warm White LEDs in LED AddiKit
