FEETECH (Fitec) FS90MG Metal Geared Servo with Accessories
$5.85
Unit price /
Unavailable
Shipping calculated at checkout.
FEETECH (Fitec) FS90MG Metal Geared Servo with Accessories is backordered and will ship as soon as it is back in stock.
Delivery
Delivery
Ships Same Day if Ordered Before Noon Pacific Time
The FS90MG micro servo has metal gears inside of it instead of the standard plastic gears found in many servos.

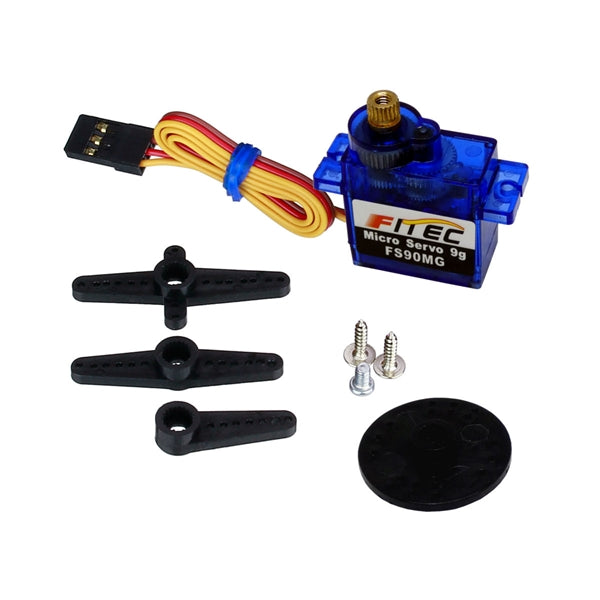

Product Contents:
- 1 — FEETECH (formerly Fitec) FS90MG Metal Gear Servo
- 1 — straight single-ended servo horn
- 1 — straight double-ended servo horn
- 1 — winged straight double-ended servo horn
- 1 — round servo horn
- 1 — servo horn screw
- 2 — FS90MG servo mounting screws
Specifications:
| Torque | |
|
30.6 oz-in (2.2 kg-cm) |
|
34.7 oz-in (2.5 kg-cm) |
| Speed | |
|
0.11sec/60° |
|
0.10sec/60° |
| Voltage | 4.8V to 6V |
| Gears | Metal |
| Cable Length | 24cm (9.45"), not including plug |
| Dimensions | 22.6mm x 12mm x 32mm (0.89" x 0.48" x 1.26") |
| Weight (including horns and screws) | 16g (0.565oz) |
| Pulse width | 400-2400µs |
Dimensions:
| A | 18.25 mm |
| B | 20.8 mm |
| C | 22.5 mm |
| D | 28.1 mm |
| E | 32.0 mm |
| F | 12.0 mm |
| G | 22.6 mm |
| H | 32.2 mm |
