Wheel for FS90R Servo (60x8mm)
This wheel is made specifically for use with the FS90R continuous rotation servo.

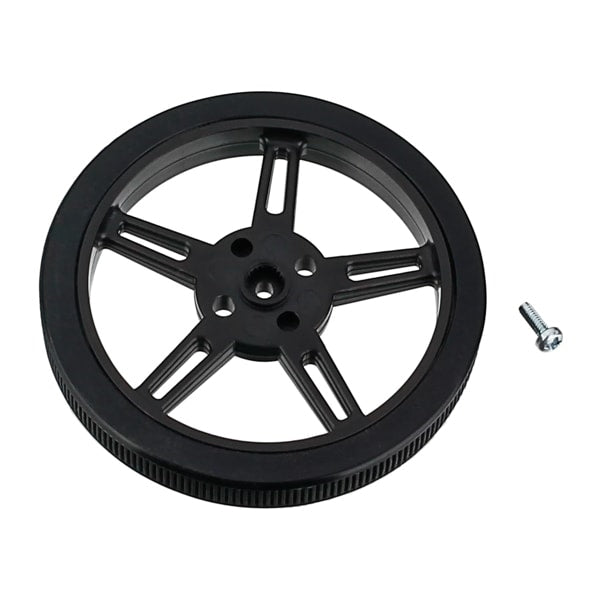

The wheel is made of plastic and has a silicone tire for added traction. The wheel fits onto the spline of an FS90R servo and we include a screw to use for securing the wheel to the servo's spline.
The spokes of the wheel allow you to use a sensor such as our CNY70 optical sensor to count each time a spoke passes by the sensor and therefore count the revolutions of the wheel and calculate the distance traveled. Since the wheel has a circumference of 188.5 mm (7.42") and has five spokes, you can easily get 1/5th rotation precision. So you could measure distance traveled with a precision of 37.7 mm (1.48"). Of course the precision could be improved through modifications such as adding an encoder style disk to the wheel with more reflective/non-reflective bands/lines or by using an additional optical sensor.
- 1 — plastic wheel, compatible with FS90R servo
- 1 — silicone tire
- 1 — screw
| Wheel Material | Plastic |
| Tire Material | Silicone |
| Dimensions | |
| Diameter | 60 mm (2.36") |
| Circumference | 188.5 mm (7.42") |
| Width | 8 mm (0.31") |
| Weight | 12.4 g (0.44 oz) |
Units: mm over [inches]
