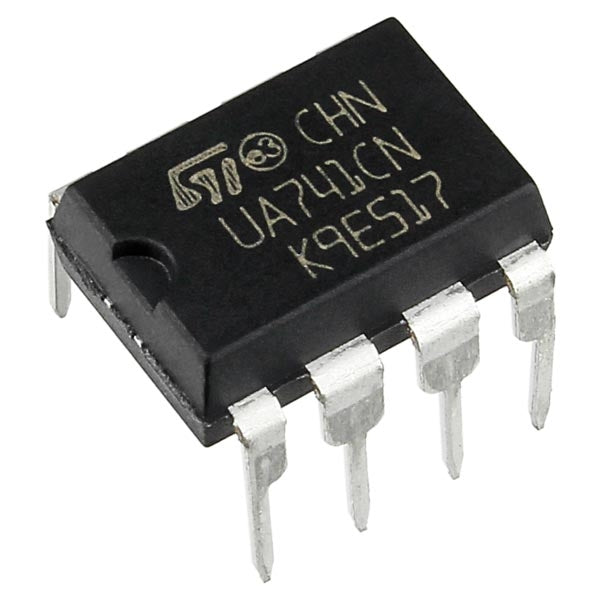

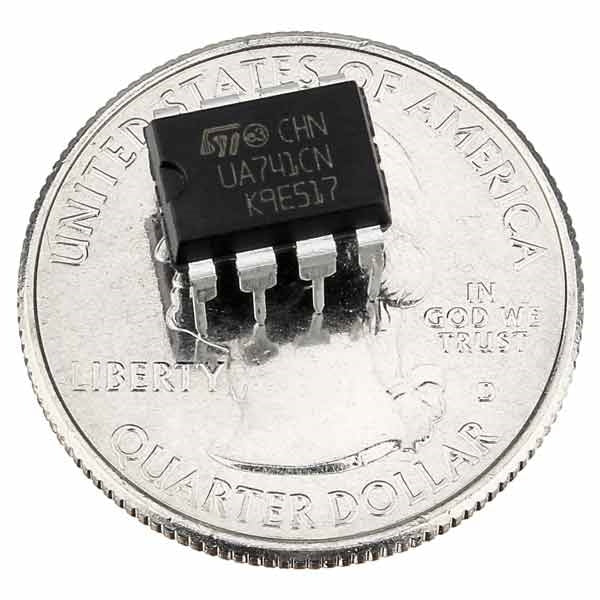

The UA741 is a single general-purpose operational amplifier featuring offset-voltage null capability. The high gain and wide range of operating voltages provide superior performance in integrators, summing amplifiers, and general feedback applications. The internal compensation network (6 dB/octave) ensures stability in closed-loop circuits.
Features
- Large input voltage range
- No latch-up
- High gain
- Short-circuit protection
- No frequency compensation required
Specifications
- Slew Rate: 0.5 V/µs
- Gain Bandwidth Product: 1MHz
- Current - Input Bias: 10nA
- Voltage - Input Offset: 1mV
- Current - Supply: 1.7mA
- Current - Output/Channel: 25mA
- Voltage - Supply, Single/Dual (±): 10 V ~ 44 V, ±5 V ~ 22 V
- Operating Temperature: 0°C ~ 70°C
- Package/Case: 8-DIP (0.300", 7.62mm)
