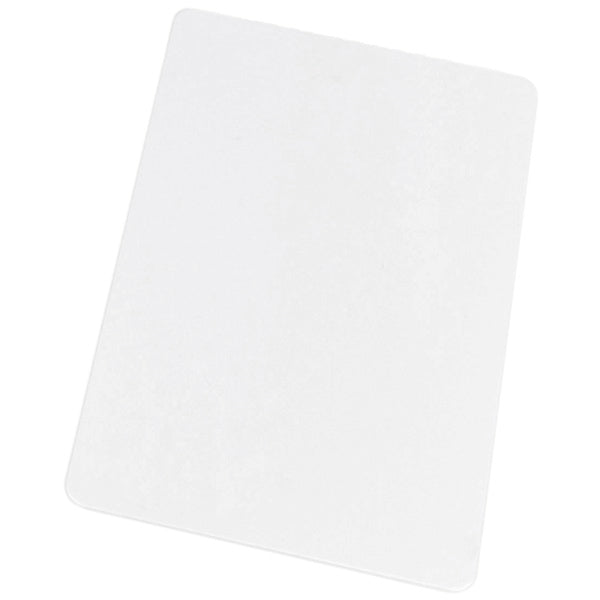

RFID Card 13.56 MHz MF1ICS50 (MIFARE Classic 1K)

This RFID card works with our RC522 RFID reader/writer and any other MIFARE 13.56MHz RFID readers and/or writers.

Specifications

• Operating Frequency: 13.56 MHz

• Internal RFID Chip: MF1ICS50 (MIFARE Classic 1K)

• Data transfer: 106 kbit/s

• Data integrity: 16 Bit CRC, parity, bit coding, bit counting

• Internal EEPROM Memory:

  • 1 Kbyte, organized in 16 sectors with 4 blocks of 16 bytes each (one block consists of 16 bytes)

  • Data retention: 10 years

  • Write endurance: 100000 cycles

• Security:

  • Mutual three pass authentication (ISO/IEC DIS 9798-2)

  • Individual set of two keys per sector (per application) to support multi-application with key hierarchy

  • Unique serial number for each card

• Dimensions conform to the international credit card specifications ISO10536 standard

Resources

• MF1ICS50 RFID Chip Datasheet
