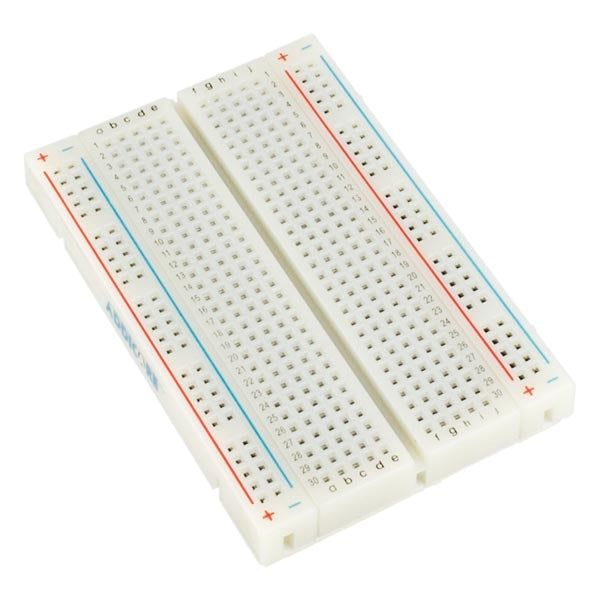

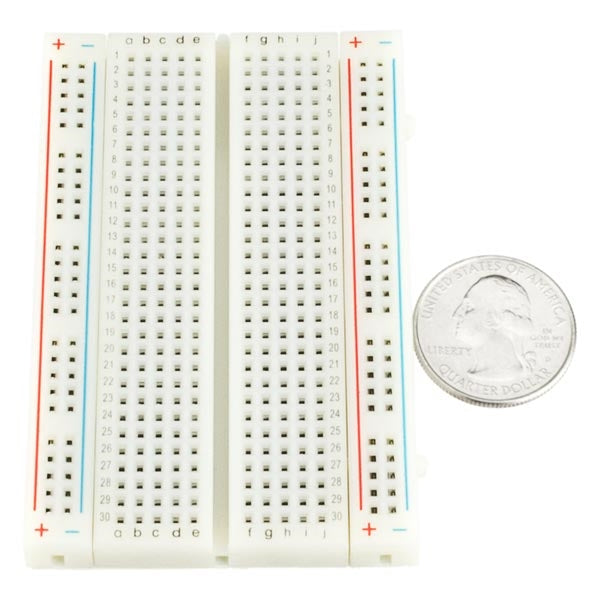

Breadboard 400 Tie-Points 4 Power Rails

Specifications

• 400 total tie-points:

  • 300 general prototyping tie-points

    • 2 columns of 30 rows of 5 interconnected tie-points

  • 100 power rail tie-points

    • 2 pairs of positive and negative power rails, one pair on each side of the breadboard

      • 25 interconnected tie-points per rail

• The two columns have a 0.3" (7.62mm) separation which allows for easy placement of
• DIP style package ICs

• Board-to-board side connectors on all four sides allow you to connect multiple breadboards together to form larger breadboards

  • The power rail pairs are attached to the main board with the same board-to-board connectors

    • You can remove the power rails from the main breadboard and cut the adhesive foam backing to make a smaller breadboard and independent power rail pairs

• Peel away paper protected self-adhesive foam backing to mount to projects or mounting plates

• Hole Spacing: 2.54mm (0.1")

• Acceptable Pin Sizes: 29-21 AWG

• Contacts: 2.54mm (0.1")

• Material: Nickel plated brass

• Rated Amperage: 2A

• Dimensions (Excluding the board-to-board side connectors and adhesive foam backing):

  • Length: 82.55mm (3.25")

  • Width: 54.61mm (2.15")

  • Height: 8.38mm (0.33")
