Photoresistor 5mm
$0.18
Unit price /
Unavailable
Click the "View Quantity Discounts" button below the "add to cart" button to see discounts on multiples of this item.

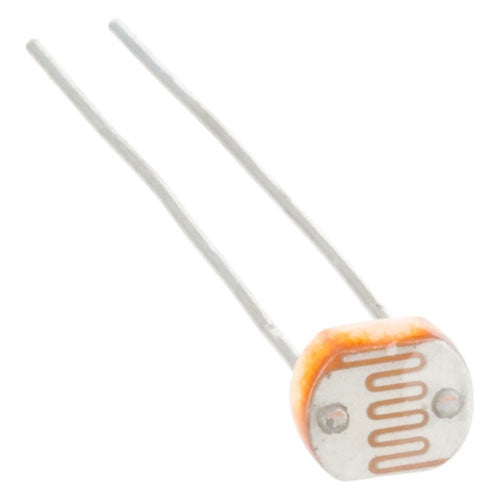

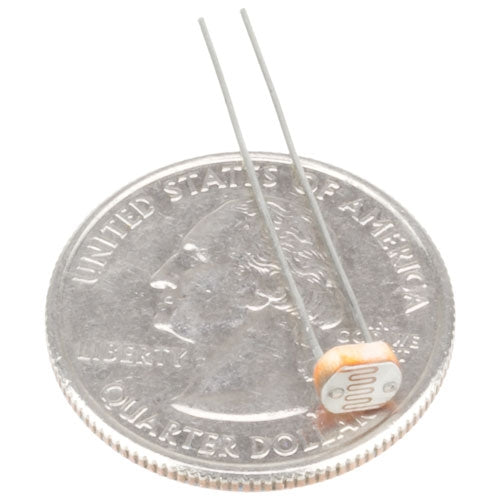

This photoresistor (aka photo detector, photocell) senses light and changes resistance depending on exposure to light.
Product Contents:
- 1 piece - 5mm Photoresistor
Specifications:
| GL5506 | GL5516 | GL5528 | GL5539 | |
| Light Resistance | 2-5k Ohm | 5-10k Ohm | 10-20k Ohm | 50-100k Ohm |
| Dark Resistance | 200k Ohm | 500k Ohm | 1M Ohm | 5M Ohm |
| Max Voltage | 150V | 150V | 150V | 150V |
| Max Power | 100mW | 90mW | 100mW | 100mW |
| Dimensions (Excluding Pins) | 5mm (0.2") length x 4.3mm (0.17") width x 2.3mm (0.09") height | |||
