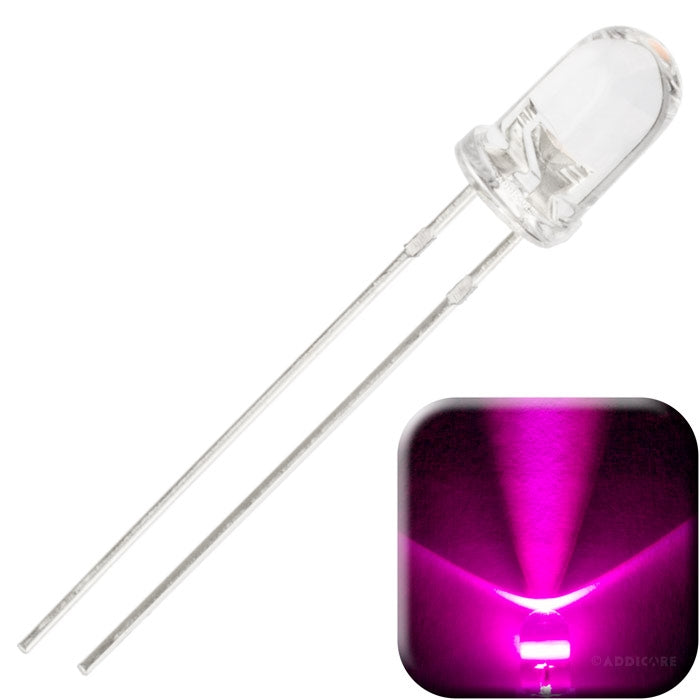

Pink 5mm LED
$0.08
Unit price /
Unavailable
Click the "VIEW QUANTITY DISCOUNTS" button below the "ADD TO CART" button to see discounts on multiples of this item.
Product Contents:
- 1 piece - Pink 5mm LED
Specifications:
- Color: Pink
- Voltage: 3.0-3.2V
- Continuous Forward Current: 20mA
- Max Forward Current: 30mA
- Intensity: 3000-4000 mcd
- Lense: Clear
- View Angle: 30 degrees
- Recommended resistors to use with these LEDs when using the given supply voltage:
- 3.3V Supply: 15 Ohm Resistor
- 5V Supply: 100 Ohm Resistor
- 12V Supply: 470 Ohm Resistor
- Shorter pin is the cathode (negative)
- Lense Diameter: 5mm
- Weight: 0.31g (0.011oz)
- Pin length: 27.0mm (1.06 in) and 28.5mm (1.12 in)
- Replacement for Pink LEDs in LED AddiKit
