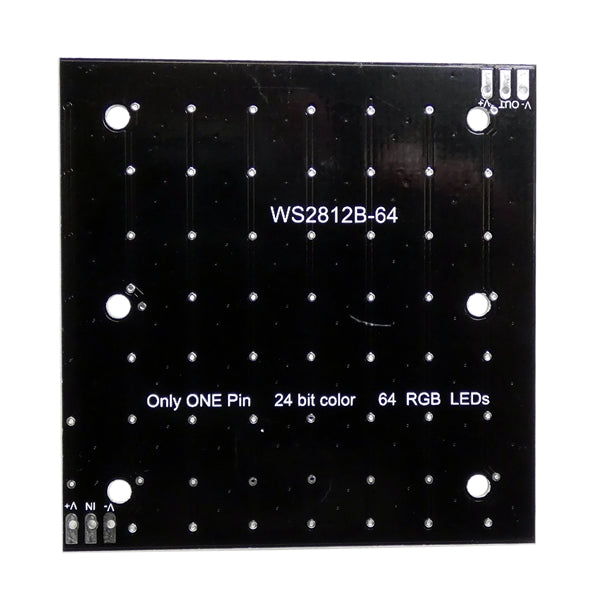

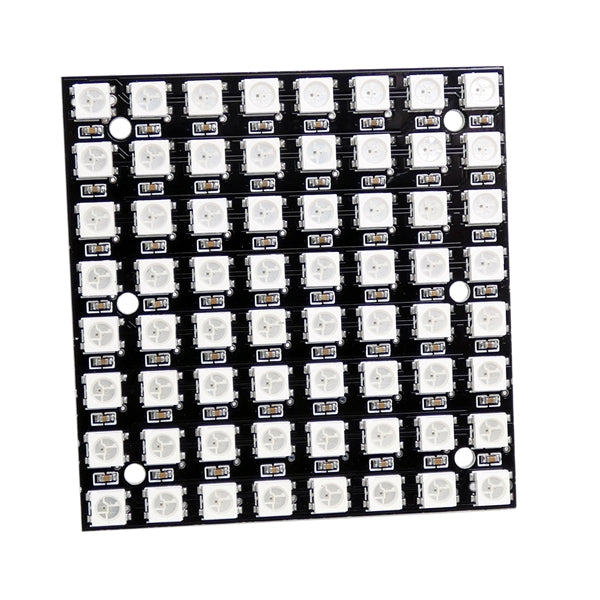

WS2812B RGB Addressable LED 8x8 Module
$8.89
Unit price /
Unavailable
These are great little RGB LED modules. You can daisy chain multiples of these modules together and control each LED individually (addressable LEDs).
Product Contents:
- 1 — WS2812B RGB Addressable LED 8x8 Module
Specifications:
| Supply Voltage | 5 V |
| Color Wavelengths | |
| Red | 620~625 nm |
| Green | 522~525 nm |
| Blue | 465~467 nm |
| Dimensions | |
| Width | 66 mm (2.6") |
| Length | 66 mm (2.6") |
Resources:
- WS2812B Datasheet
- FastLED Library - A great WS2812B code library and resource for Arduino and other microcontrollers including ARM
